Features
This machine is constructed for nonstop heavy-duty digital and offset printed
sheet lamination. It is equipped with a Foliant integrated suction
feeder and high-speed bump separator. Several options are available for
the Foliant Mercury NG 4×4 machine: pallet stacker, non-sticky
rollers or Foliant foiler.
Due to its high-pressure system, format and
performance, the machine is suitable for all jobs.
FAST
The machine’s maximum speed is up to 88.5
feet/minute in single-sided lamination or 82 feet/minute in double-sided
lamination.
Performance examples:
Mercury 400 NG 4X4 - 3,240/3,000 sheets per hour of 14″ x
20″ portrait (white paper 200 gsm).
Mercury 530 NG 4X4 - 2,300/2,100 sheets per hour of 19.7" x 27.8" in portrait (white paper 200 gsm)
Advantages at a Glance
- Easy operation
- Equipped with a rising back pile separation stream feeder with a Foliant suction feed head
- Single-sided and double-sided thermal industrial laminator
- Film is mounted on a quick-change shaft with a film tension control breaker
- Film holder unit is equipped with a trim slitter and perforation wheel
- Pressure is pneumatically adjustable
- De-curl blade for offset printed sheets
- De-curl roller for digitally printed sheets
- OMRON programmable logic controller for easy automation
- Optional
Jogger 400 or 530, pallet stacker, non-sticky pressure roller, film
loader/manipulator, film micro adjustment air shaft, Foliant Foiler
*Important – The machine must be operated with either a jogger or pallet stacker.
Mercury 400 NG 4X4
(15.7" x 27.5" max sheet size)

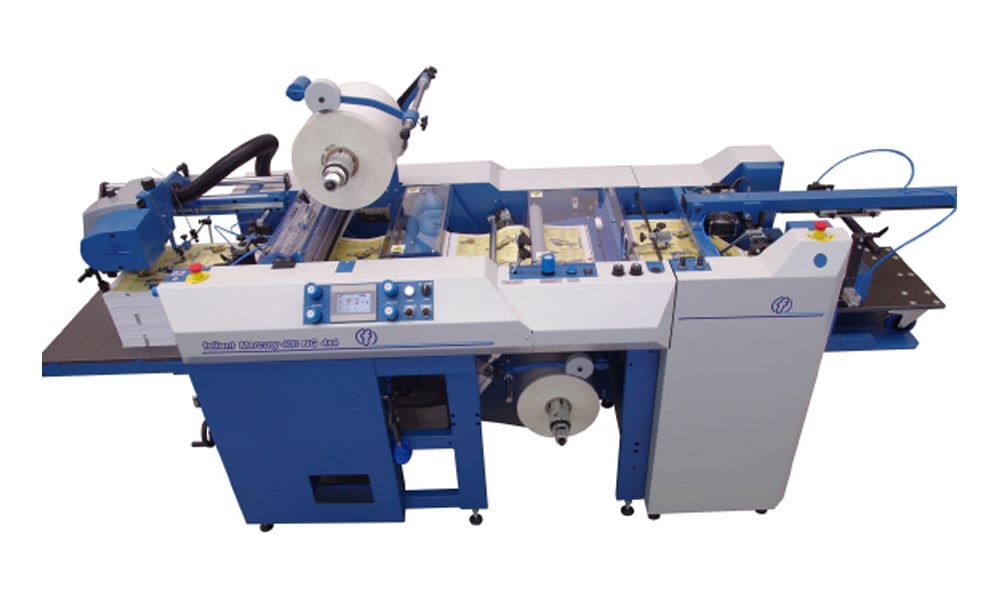

400 model shown with optional Pallet Stacker
Mercury 400 NG 4X4 Brochure:
Mercury 530 NG 4X4
(20.8" x 29.5" max sheet size)

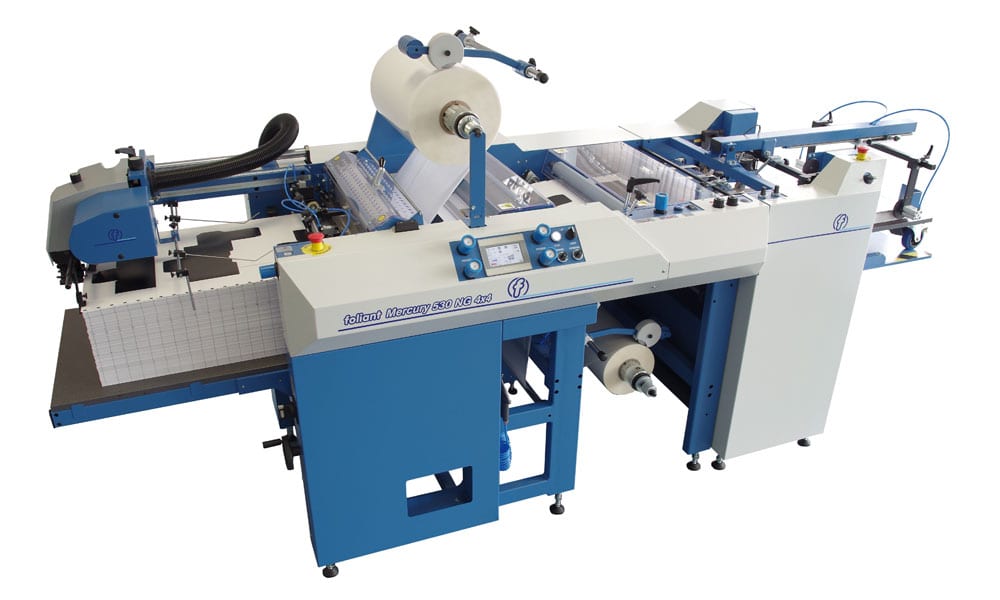

530 model shown with optional Pallet Stacker
|
