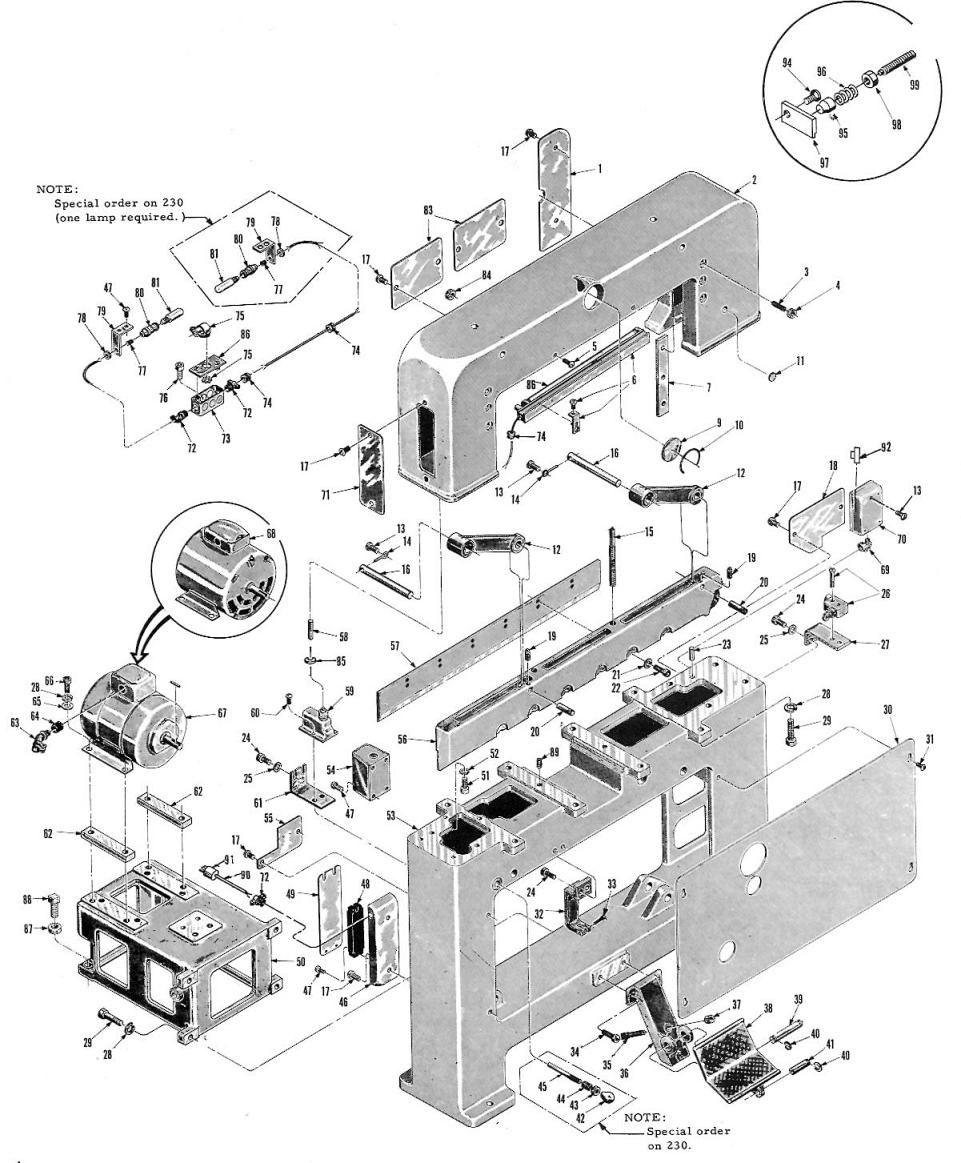

You are here: Home > Cutting, Trimming and Slitting > Paper Cutter Parts & Supplies > Challenge Cutter Parts & Supplies > Challenge Parts Drawings > Champion Cutters - 230 and 305 MB,MC - Ser# 1001 to 3653 -Body Drawings
Champion 230 and 305 Sizes
Models MB/MBD/MC/MCD
Serial Numbers 1001 to 3653

*We do not carry common hardware. Sorry.

"Call Us" usually means we may have the part, but don't have it listed on the site yet

Quantity Required

GMC #

Ref

Part Num

Part Description

For 230

For 305

1

4468-1

Cover

1

1

Call Us

1

4468

Cover-No cutout for snubber

1

1

G40452

2

4500-1

Arch

1

Call Us

2

4500

Arch-No Snubber

1

G40466

4102

Arch

1

Call Us

3

1/2-13 x 3

Soc. Set Screw Oval Point

6

6

*

4

5-663

1/2 - 13 Jam Nut (Plated)

6

6

*

5

8-32 x 1 1/4

Round Hd. Mach. Screw

2

2

*

6

SS- 980-1M

Fluorescent Unit

1

1

Call Us

7

4505

Knife Bar Gib

2

2

G27391

9

5-8-399

Lens

1

1

Call Us

10

5-8-409

Lens Holder

1

1

Call Us

11

5-1562

3/4 Snap in Blank

3

3

Call Us

12

4503

Link Knife Bar

2

2

G40488

13

10-24 x 3/8

Rd. Hd. Mach. Screw

5

5

*

14

S-1244

Pin Lock

2

2

G30702

15

4449

Knife Adjusting Screw

2

2

G27363

16

4507

Pin Knife Bar Link

2

2

G27401

17

1/4-20 x 3/8

Rd. Nd. Mach. Screw

16

16

*

18

4462

Cover R. H.

1

1

G40453

19

1/4-20 x 1

SW. Nd. Set Screw

2

2

*

20

4518

Pin - Knife Link

2

2

G27443

21

S-1083-1

Special 3/8 Washer

5

6

Call Us

22

S-1326

Knife Bolt

5

6

*

23

#6 x 1 1/2

Taper Pin

2

2

*

24

1/4-20 x 3/4

Hex Nd. Cap Screw

6

6

*

25

1/4

Standard Washer

4

4

*

26

E-804

Micro Switch

1

1

G37319

27

4446

Bracket Knife Switch

1

1

G40483

28

3/8

Medium Lock Washer

16

16

*

29

3/8 x 1 3/4

Hex Hd. Cap Screw

12

12

*

30

4107

Front Panel

1

Call Us

4475

Front Panel

1

Call Us

31

S-1258

3/8-16 x 1/2 Plated Rd. Hd. Mach. Screw

4

4

*

32

4454

Gage Mtg. Bracket

1

1

Call Us

33

1/4-20x1 1/2

Hex Hd. Cap Screw

1

1

*

34

3/8 x 1

Hex Hd. Cap Screw

2

2

*

35

1/4-20x2 1/2

Square Hd. Set Screw

2

2

Call Us

36

4403

Bracket-Foot Treadle

1

1

New or Recond. Available

37

1/4-20

Hex Jam Nut

2

2

*

38

4404

Treadle- Foot

1

1

G40490

39

4416

Shaft- Treadle

1

1

G40456

40

S-1193-37

.375 Truarc Ring

3

3

*

41

4427

Adjusting Block Retaining Pin

1

1

Call Us

42

S-1466

3/8-16 Plastic Knob

1

Call Us

43

3/8-16

Std. Hex Jam Nut

1

*

44

S- 1407

.390 x 1/2 ring

1

Call Us

45

4499

Stud (Lock)

1

1

Call Us

46

E-881

Gang Box

4

8

N/A

47

#10-24 x 5/8

Rd. Hd. Mach. Screw

1

1

*

48

E-6 80-14

Terminal Block

1

1

N/A

49

E-882

Cover - Gang Box

1

1

N/A

50

4417

Bracket Motor Mount

1

1

G40468

51

1/2-13x1 3/4

Soc. Hd. Cap Screw

8

8

*

52

1/2

Medium Lockwasher

8

8

*

53

4101

Base

1

Call Us

4402

Base

1

G40467

54

E-925

Control Relay

1

1

Call Us

55

4463

Cover L. H.

1

1

G40454

56

4104

Knife Bar

1

Call Us

4501-1

Knife Bar

1

Call Us

4501

Knife Bar-No Mounting for Cam Plate

for snubber

1

Call Us

57

230-2122-3

Knife

1

Mult. Choices

2238-2

Knife

1

Mult. Choices

58

4410

Pin - Switch Trip

1

1

G40457

59

E-96-l

Micro Switch

1

1

Call Us

60

#8-32 x 1/4

Rd. Hd. Mach. Screw

2

2

*

61

4408

Bracket-Knife Bar Switch

1

1

G40481

62

4412

Riser Block

2

2

Call Us

63

E-696

1/2 Flex Conduct Cona. 450

1

1

N/A

64

E-662

Conduit Reducer

1

1

N/A

65

3/8

Standard Washer

4

4

*

66

3/8-16x1 1,2

Soc.Hd.Cap Screw

4

4

*

67

E-567-2

Motor 1 1/2 H. P. 3 PH.

1

1

Call Us

68

EE-526-4

Motor 3 H. P. 1 PH.

1

1

Call Us

69

K-504

1/2 x 90° Angle Connector

1

1

N/A

70

E-901-3

Manual Starter-Three Phase

1

1

Call Us

E-901-4

Manual Starter-Single Phase

1

1

Call Us

71

4469-1

Cover-End

2

2

G40450

72

E-894

Cord Grip

2

4

N/A

73

S-1312

Junction Box

1

1

N/A

74

K-331

Bushing

1

3

N/A

75

S-887

3/8 x 90° Angle Connector

1

1

*

76

#10-24 x 3/8

Soc. Hd. Cap Screw

1

2

*

77

E-436

Brass Nipple

1

2

Call Us

78

E-439

1/8 Pipe Nipple Nut

1

2

Call Us

79

4494

Line Light Bracket

1

2

G40486

80

E-887

Socket

1

2

Call Us

81

E-888

Lamp 25 Watt - 110 V. 1001-1457

1

2

Call Us

E-933-2

M-1800 & Up

1

1

G47771

82

E-933

Lamp 40 Watt — 110 V. 1458-1799

1

2

Call Us

83

4470

Cover Arch Back

2

2

G40451

84

#8-32

Hex Nut

2

1

*

85

S-1193-25

.250 Truarc Ret. Ring

1

1

*

86

S-845

Fluorescent Lamp 15w

1

1

G47772

87

S-1313-1

Junction Box Cover

2

N/A

88

5/8 - 11

Hex Jam Nut

2

2

*

89

5/8 - 11 x 2

Sq. Hd. Set Screw

2

2

*

90

1/2

(Nylok) Fl. Pt. Soc. Set Screw

2

1

*

91

KK-299-2C

Power Cord

1

1

N/A

92

S-1253

Adaptor 3 Prong

1

2

N/A

E-510-N33

Heater Element 220V. -3 PH.

2

2

Call Us

E-510-N26

Heater Element 440v. -3 PH.

2

1

Call Us

E-510-N41

Heater Element 220V. -1 PH.

1

Call Us

94

3/8x 16 x 3/4

Flat Head Machine Screw

1

1

*

95

S-1254

Clamp Plunger

1

1

G30706

96

S-1255-1

Spring

1

1

G30708

97

4519

Cam Plate

1

1

Call Us

98

½ x 13

Jam Nut

1

1

*

99

4517

Clamp Plunger Screw

1

1

Call Us
