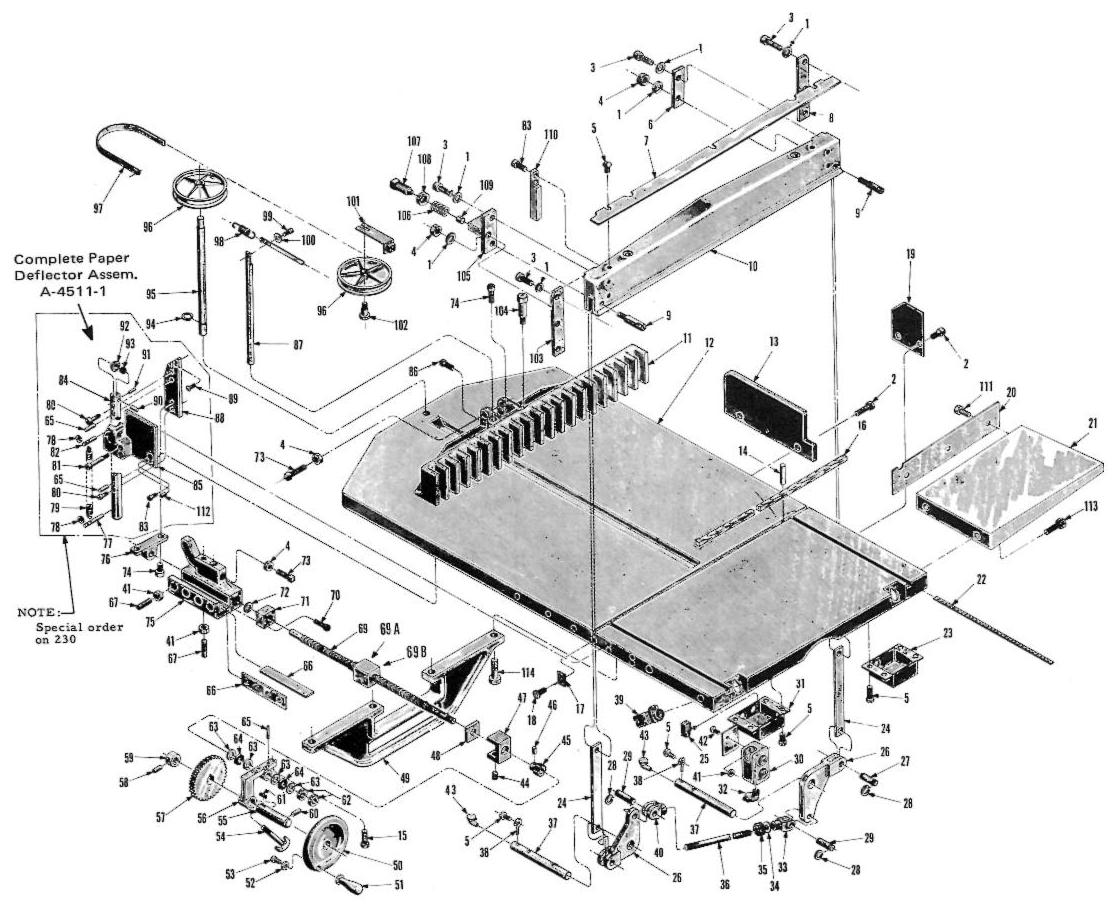

Champion 230 and 305 Sizes
Models MB/MBD/MC/MCD
Serial Numbers 1001 to 3653

Quant. Required

GMC Number

Ref

Part Number

Part Name

For 230

For 305


1

3/8

Medium Lock Washer

10

10


2

3/8-16 x 3/4

Hex Nd. Cap Screw

10

8


3

3/8-16x1 1/4

Soc. Head Cap Screws

8

8


4

3/8-16

Hex Jam Nut

5

5


5

10-24 x 3/8

Rd. Nd. Mach. Screw

10

13


6

4508

Clamp Guide Bar

1

1

Was G27406

7

4476

Light Line Adj. Plate


1


8

4509

Bar Clamp Guide R.H.

1

1

Was G27407

9

4506

Stud Clamp Pull Down

2

2

G51047

10

4502

Clamp


1

Was G40469


4105

Clamp

1



11

4108

Back Gage-One Piece

1




A-4121

Split Backgage -Assy. Complte

1




4472

Back Gage-One Piece


1

G40470


A-4455

Split Backgage -Assy. Complete


1


12

A-4488

Table Assy. & Guide


1



A-4106

Table Assy. & Guide

1



13

4528-1

Rear Guide RH.

1

1

G47879

4459

Rear Guide L. H.

1

1

G47876

14

#7 x 2 1/4

Taper Pin

2

2


15

3/8-16 x 1

Hex Rd. Cap Screw

2

2


16

5-143

Wood Cutting Stick


1



230-312

Wood Cutting Stick

1



17

5-6-27-B

Stop for Cutting Stick

1

1


18

#8-32 x 3/8

Fl. Hd. Screw Soc. Hd.

1

1


19

4439

R. H., Front Side Guide

2

1

G47878

20

4529-1

R. H. Table Ext. Back

1

1



4530-1

L. H. Table Ext. Back

1

1


21

A-4452-S

R. H. Table Ext.

1

1



A-4453-S

L. H. Table Ext.

1

1


22

A-2236-1

Table Scale

1

2


23

A-4532

Assy. Push Button Box

1

1

G40482

24

4504

Bar-Clamp Pull Down

2

2

G27386

25

E-899

Toggle Switch


1


26

4406

Bell Crank-Clamp


2

G40492

4115

Bell Crank-Clamp

2



27

S-482-1

500 x 1. 539 Str. Rod End Pin

1

1


28

S-1193-50

. 500 Truarc Ret. Ring

2

2


29

S-1195

.500 x 2. 219 End Pin

2

2


30

E-671

Start-Stop, Pushbutton Station

1

1


31

A-4492

Cover - Pushbutton L. H.

1

1

G40478

32

S-887

3/8_90deg Angle Conn.

1

1


33

4465

Clevis R. H. Clamp Conn. Rod

1

1

G40484

34

3/4

Shakeproof Lockwasher Int.

1

1


35

3/4-10

Hex Jam Nut

1

1


36

4461

Rod-Clamp Connecting


1

G47890

4119

Rod-Clamp Connecting

1



37

4409

Pin- Bell Crank

2

2

G11149

38

8-1244

Pin- Lock

2

2


39

E-895-4

Flush Hd. Push Button

2

2


40

4466

Clevis L. H. Clamp Conn. Rod

1

1

G40477

41

1/4 - 20

Hex Jam Nut

2

2


42

1/4 x 1/2

Screw Rd. Hd.

2

2


43

1233-6531

Oiler (Gits Bros)

2

2


44

#10-24 x 1/4

Cup Pt. Soc. Set Screw

1

1


45

4046

Gear-Back Gage Screw

1

1


46

#0-3/4

Taper Pin

1

1


47

6173

Wiper Retainer

1

1


48

6172

Wiper-Ball Brg. Screw

1

1


49

4484

Brace- Table


1


50

4-4477-1

Assem. Hand Wheel

1

1


51

S-1-1

Steel Handle

1

1

Assmbly

52

1/4

Std. Washer

1

1


53

1/4-20 x 1/2

Button Hd. Soc. Cap Screw

1

1


54

5-1564

3/8 x 4 Mallable Thumbscrew

1

1


55

4478

Shaft-Hand Wheel

1

1

Assmbly

56

4496

Hand Wheel Brkt. -Front

1

1

G51121

57

4480

Gear - Spur (non-metallic)

1

1

Assmbly

58

#3 x 1 1/4

Taper Pin

1

1


59

S-414

Collar

1

1

Assmbly

60

#3 x 1 3/4

Taper Pin

1

1


61

3/16x3/16x5/

Square Key

1

1


62

1/2 - 20 NF

Hex Jam Nut

2

2


63

S-1295

Thrust Washer

4

4


64

S-1300

Needle Thrust Bearing

2

2


65

3/16 Dia.x 1”

Sel-Lok Pin

2

4


66

4510

Gib-Back Gage Nut

2

2

G40493

67

1/4-20 x 1”

Oval Pt. Soc. Set Screw

8

8


69A

R-4482

Cartridge Ball Bearing

1

1


69 B

4051

Backgage Nut

1

1

G18351

69

A-4424

Ball Bag Screw Assem.


1

G40497

A-4116

Ball Bag Screw Assem.

1




A-4424-1

Backgage Screw Acsem.


1




(305 MB-3234 & Up)





A-4116-1

Backgage Screw Assem.

1





(230 MB-3290 & Up)




70

#10-24 x 1

Soc. Hd. Cap Screw

4

4


71

4474

Wiper Retainer - Rear

1

1


72

6174

Wiper Ball Brg. 3cr. -Rear

1

1


73

3/8-16x1-3/4

Sq. Hd. Set Screw

2

2


74

3/8 x 1

Soc. Hd. Cap Screw

3

3


75

4473

Back Gage Nut

1

1

G40475

76

4419

Back Gage Scr. Brkt.

1

1

G40480

77

4521

Pin

1

1


78

S-il 93-25

250 Truarc Ring

2

2


79

H-561

Feedguide Stopspring

1

1


80

1/4-20 x 3/4

Soc. Hd. Cap Screw

2

2


81

3/8-16NCx2

Soc. Hd. Cap Screw

2

2


82

4520

Pin-upper

1

1


83

3/8-16NCx3/4

Soc. Hd. Cap Screw

2

3


84

4498

Shaft

1

1


85

4522-1

Guide Block

1

1

G40455

86

1/4 x 1/2

Sw. Hd. Set Screw

1

1


87

4451

Back Gage Tape Holder

1

1

G40502

88

4523

Deflector - Paper

1

1


89

1/4-20-5/16

Rd. Hd. Mach. Screw

1

1


90

S-433

Vib. Roller Pin

1

1


91

S-496-1

Straight Pin

1

1


92

4495-1

Roller -Paper Deflector

1

1


93

S-861-1

Bushing (Oilite)

1

1


94

S-1193-62

.625 Truarc Ret. Ring

1

1


95

4450

Rear Tape Wheel Support

1

1

G40501

96

56P-25

Tape Wheel Assy.

2

2


97

A-4448

Back Gage Tape Assembly


1

G40500

A-4120

Back Gage Tape Assembly

1


G11150

98

4052

Tape Spring

1

1


99

S-671

1/4 -20x3/8 Plated Cap Screw

1

1


100

1/4

Polished Washer

1

1


101

A-5951

Assy. Tape Reader Sight

1

1


102

5-6-75

Tape Reel Stud

1

1

G40458

103

4512

Bar-Clamp Guide L. H.

1

1

G11062

104

1010-5254

Stripper Bolt

1

1


105

A-4514

Assy. Clamp Plunger Brkt.

1

1


106

S-1255-1

Spring

1

1

G28616

107

4513

Screw-Clamp Plunger

1

1


108

8-6424

1/2 x 13 Hex Jam Nut

1

1


109

S-1254

Clamp Plunger

1

1

G30758

110

4441

Paper Guide

1

1

G40499

111

1/4-20x1/2

Hex. Hd. Cap Screw

6

6


112

21S-250-0750

1/4 Dia. x 3/4 Sel- Lok Pin

1

1


113

3/8-16x1 1,’2

Hex. Hd. Cap Screw

4

4
